MidiHeat Digital EHD 18-72kW
MidiHeat is manufactured from materials of the highest quality. The casing made of powder coated zinc sheet not only gives the product a very stable construction, it also makes the product highly resistant against corrosion.MidiHeat has a temperature range of 8-45°C. Heating elements of titanium do not only make the heating highly effective, it also makes the heating element fully corrosion resistance.
Additional safety
For optimal safety and in accordance with applicable electrical safety standards MidiHeat has two built-in contactors for each heating element. A built-in flow switch and overheat cut out accompanied by an external input for pool water circulation.

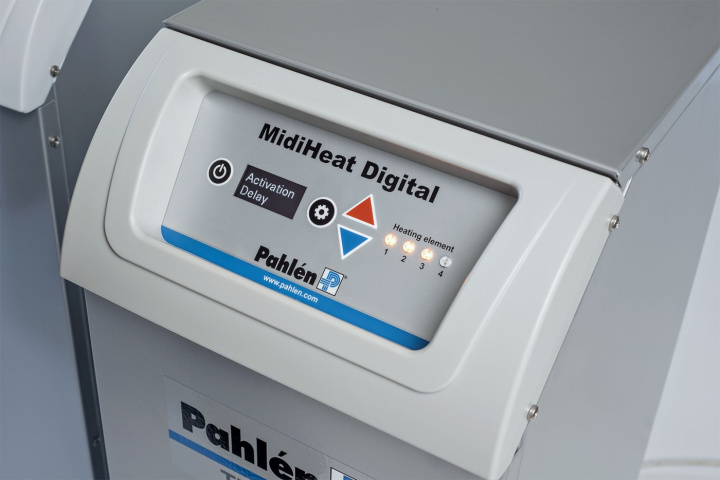

Control panel for MidiHeat Digital
- Digital temperature control 8-45°C.
- Master-/slave - connect up to nine heaters and control them with a master.
- Activation delay - adjustable delay time for sequential start of the heating elements, 5-60 seconds.
- Temperature offset - manually adjust the actual pool temperature, up to ±4°C.
- Restore factory settings - option for resetting all settings.
- Error codes - automatic storing of the last ten error messages.
Slip connections for bonding of Ø 63 mm tube.
Minimum flow 170 l/min. Max flow 300 l/min.
Max pressure: 2 bar.
MidiHeat functions extremely well in fresh water pools and in pools fitted with a salt chlorinator.
