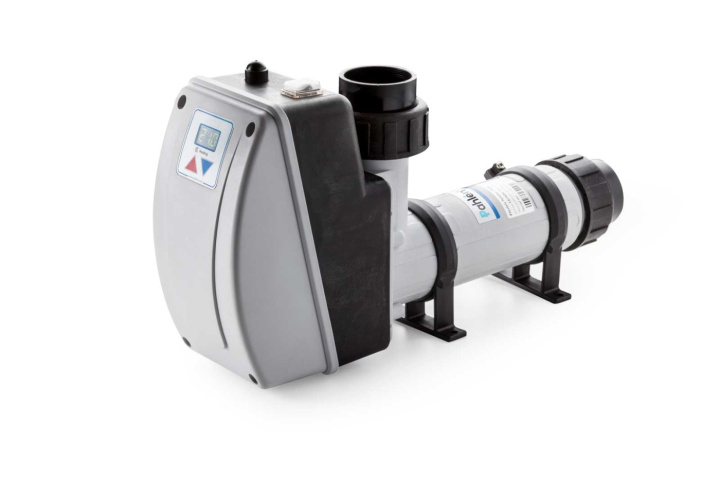

Aqua HL electric heater 3-15kW
The desired pool temperature can easily be set and the current pool temperature is shown in the LED display. In addition to an overheating protection and a flow switch, the heater has built-in contactors, that simplifies the connection of the heater.The heating element is made of titanium and the casing of the heater is made of glassfibre reinforced polypropylene. The Aqua HL line heaters are available with outputs in sizes from 3-15kW up to 415V (230V 1-phase, 400/415V 3-phase) and are supplied with union couplings for bonding to Ø 50 mm pipes.
The minimun flow is 90 l/min. Max. pressure: 2 bar. Minimum temperature 5 °C.
Electronic digital control
– Temperature settings
– Heating in operation
– Actual temperature in pool / Set temperature
Electric heater with a digital control, where the desired pool temperature can easily be set.
Features
- Capacity range 3-15kW
- Aqua HL comes with contactors and electronics
- Digital control and display
- Made of reinforced thermoplastic
- Horizontal installation
- Heating elements of titanium
- Equipped with overheating limit control and flow switch
- Dual built-in contactors as per electrical safety standards
- Third-party tested and certified
- Slip connections for bonding of Ø 50 mm pipes
